스테인리스 배관용 부속(Pipe Fittings)

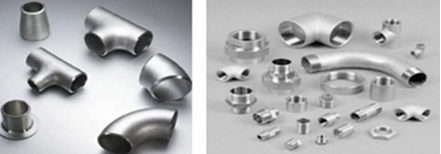

배관용 부속은 파이프와 파이프를 연결하는 부속으로 관이음쇠라 하며, 파이프와 마찬가지로 용접부속과 비 용접부속으로 구분되며, 각종 건설자재, 해양플랜트, 석유/가스라인에까지 다양하게 사용되어지고 있으며, 최근 인테리어 소품에도 많이 쓰여지고 있습니다.

90도 엘보

규격
Nominal
Pipe size		 Outsude
diameter
(O.D)		 Wall Thickness (t) Center
to End		 Weight
SCH5s SCH10s SCH20s SCH40s F SCH5s SCH10s SCH20s SCH40s
15 21.7 1.65 2.1 2.5 2.8 38.1 0.05 0.06 0.07 0.08
20 27.2 1.65 2.1 2.5 2.9 38.1 0.06 0.08 0.09 0.10
25 34.0 1.65 2.8 3.0 3.4 38.1 0.08 0.13 0.14 0.15
32 42.7 1.65 2.8 3.0 3.6 47.6 0.12 0.21 0.22 0.26
40 48.6 1.65 2.8 3.0 3.7 57.2 0.17 0.28 0.30 0.37
50 60.5 1.65 2.8 3.5 3.9 76.2 0.29 0.48 0.59 0.65
65 76.3 2.10 3.0 3.5 5.2 95.3 0.57 0.81 0.94 1.36
80 89.1 2.10 3.0 4.0 5.5 114.3 0.81 1.14 1.51 2.03
90 101.6 2.10 3.0 4.0 5.7 133.4 1.08 1.53 2.02 2.82
100 114.3 2.10 3.0 4.0 6.0 152.4 1.39 1.97 2.60 3.83
125 139.8 2.80 3.4 5.0 6.6 190.5 2.83 3.42 4.97 6.48
150 165.2 2.80 3.4 5.0 7.1 228.6 4.02 4.87 7.09 9.93
200 216.3 2.80 4.0 6.5 8.2 304.8 7.05 10.02 16.09 20.14
250 267.4 3.40 4.0 6.5 9.3 381.0 13.20 15.50 25.00 35.40
300 318.5 4.00 4.5 6.5 10.3 457.2 22.30 25.00 35.90 56.20
350 355.6 4.00 4.8 7.9 11.1 533.4 29.00 34.80 56.70 79.00
400 406.4 4.20 4.8 7.9 12.7 609.6 39.90 45.50 74.30 118.00
450 457.2 4.20 4.8 7.9 14.3 685.8 50.50 57.70 94.20 169.00
500 508.0 4.80 5.5 9.5 15.1 762.0 71.30 81.50 139.70 219.60
550 558.8 4.80 5.5 9.5 15.1 838.2 86.30 98.80 169.30 266.40
600 609.6 5.50 6.4 9.5 17.4 914.4 117.60 136.70 201.80 364.80
650 660.4 5.5 7.9 12.7 17.4 990.6 138.10 197.70 315.50 429.10
700 711.2 5.5 7.9 12.7 17.4 1,066.8 160.30 299.50 366.40 498.60
750 762.0 6.4 7.9 12.7 17.4 1,143.0 214.00 263.60 421.10 573.30
800 812.8 6.4 7.9 12.7 17.4 1,219.2 243.60 300.10 479.60 653.30
850 863.8 6.4 7.9 12.7 17.4 1,295.4 275.10 339.00 542.00 738.40
900 914.4 6.4 7.9 12.7 19.0 1,371.6 308.60 380.30 608.10 903.40
950 965.2 6.4 7.9 12.7 19.0 1,447.8 344.00 423.90 678.10 1,007.70
1,000 1,016.0 6.4 9.5 14.3 26.2 1,524.0 381.20 564.20 845.20 1,530.10

45도 엘보

45도 엘보
Nominal
Pipe size		 Outsude
diameter
(O.D)		 Wall Thickness (t) Center
to End		 Weight
SCH5s SCH10s SCH20s SCH40 H SCH5s SCH10s SCH20s SCH40
15 21.7 1.65 2.1 2.5 2.8 15.8 0.02 0.03 0.04 0.04
20 27.2 1.65 2.1 2.5 2.9 15.8 0.03 0.04 0.05 0.06
25 34.0 1.65 2.8 3.0 3.4 15.8 0.04 0.06 0.07 0.08
32 42.7 1.65 2.8 3.0 3.6 19.7 0.06 0.10 0.11 0.13
40 48.6 1.65 2.8 3.0 3.7 23.7 0.09 0.14 0.15 0.18
50 60.5 1.65 2.8 3.5 3.9 31.6 0.14 0.24 0.30 0.33
65 76.3 2.10 3.0 3.5 5.2 39.5 0.29 0.41 0.47 0.68
80 89.1 2.10 3.0 4.0 5.5 47.3 0.41 0.57 0.75 1.02
90 101.6 2.10 3.0 4.0 5.7 55.3 0.54 0.76 1.01 1.41
100 114.3 2.10 3.0 4.0 6.0 63.1 0.70 0.96 1.30 1.92
125 139.8 2.80 3.4 5.0 6.6 78.9 1.42 1.71 2.49 3.24
150 165.2 2.80 3.4 5.0 7.1 94.7 2.01 2.43 3.54 4.97
200 216.3 2.80 4.0 6.5 8.2 126.3 3.53 5.01 8.05 10.10
250 267.4 3.40 4.0 6.5 9.3 157.8 6.62 7.77 12.50 17.70
300 318.5 4.00 4.5 6.5 10.3 189.4 11.10 12.50 17.90 28.10
350 355.6 4.00 4.8 7.9 11.1 220.9 14.40 17.30 28.50 40.00
400 406.4 4.20 4.8 7.9 12.7 609.6 39.90 45.50 74.30 118.00
450 457.2 4.20 4.8 7.9 14.3 284.1 25.20 28.70 47.30 84.50
500 508.0 4.80 5.5 9.5 15.1 315.6 35.50 41.80 70.00 105.00
550 558.8 4.80 5.5 9.5 15.1 347.2 43.00 49.80 85.00 133.50
600 609.6 5.50 6.4 9.5 17.4 378.7 59.00 68.00 101.00 183.00
650 660.4 5.5 7.9 12.7 17.4 410.3 70 99 158 215
700 711.2 5.5 7.9 12.7 17.4 441.9 81 115 183 250
750 762.0 6.4 7.9 12.7 17.4 473.4 106 132 210 288
800 812.8 6.4 7.9 12.7 17.4 505.0 121 150 240 328
850 863.8 6.4 7.9 12.7 17.4 536.6 136 170 271 371
900 914.4 6.4 7.9 12.7 19.0 568.1 153 191 304 453
950 965.2 6.4 7.9 12.7 19.0 599.7 171 212 339 505
1,000 1,016.0 6.4 9.5 14.3 26.2 631.2 189 235 376 560

TEE

Tee
Nominal
Pipe size		 Outsude
diameter		 Wall Thickness (t) Center
to End		 Weight
RUNxOUTLET O.D₁ O.D₂ SCH 10s SCH 20s SCH 40 C M SCH
10s		 SCH
20s		 SCH
40
T₁ T₂ T₁ T₂ T₁ T₂
15 x 15 21.7 21.7 2.1 2.1 2.5 2.5 2.8 2.8 25.4 25.4 0.07 0.08 0.09
20 x 20 27.2 27.2 2.1 2.1 2.5 2.5 2.9 2.9 28.6 28.6 0.09 0.11 0.13
20 x 15 27.2 21.7 2.1 2.1 2.5 2.5 2.9 2.8 28.6 28.6 0.07 0.10 0.12
25 x 25 34.0 34.0 2.8 2.8 3.0 3.0 3.4 3.4 38.1 38.1 0.21 0.22 0.25
25 x 20 34.0 27.2 2.8 2.1 3.0 2.5 3.4 2.9 38.1 38.1 0.19 0.21 0.23
25 x 15 34.0 21.7 2.8 2.1 3.0 2.5 3.4 2.8 38.1 38.1 0.18 0.20 0.22
32 x 32 42.7 42.7 2.8 2.8 3.0 3.0 3.6 3.6 47.6 47.6 0.34 0.36 0.42
32 x 25 42.7 34.0 2.8 2.8 3.0 3.0 3.6 3.4 47.6 47.6 0.32 0.34 0.40
32 x 20 42.7 27.2 2.8 2.1 3.0 2.5 3.6 2.9 47.6 47.6 0.30 0.32 0.38
32 x 15 42.7 21.7 2.8 2.1 3.0 2.5 3.6 2.8 47.6 47.6 0.29 0.31 0.36
40 x 40 48.6 48.6 2.8 2.8 3.0 3.0 3.7 3.7 57.2 57.2 0.47 0.50 0.60
40 x 32 48.6 42.7 2.8 2.8 3.0 3.0 3.7 3.6 57.2 57.2 0.45 0.48 0.58
40 x 25 48.6 34.0 2.8 2.8 3.0 3.0 3.7 3.4 57.2 57.2 0.43 0.46 0.55
40 x 20 48.6 27.2 2.8 2.1 3.0 2.5 3.7 2.9 57.2 57.2 0.40 0.44 0.53
40 x 15 48.6 21.7 2.8 2.1 3.0 2.5 3.7 2.8 57.2 57.2 0.39 0.42 0.51
50 x 50 60.5 60.5 2.8 2.8 3.5 3.5 3.9 3.9 63.5 63.5 0.64 0.79 0.87
50 x 40 60.5 48.6 2.8 2.8 3.5 3.0 3.9 3.7 63.5 60.3 0.60 0.73 0.81
50 x 32 60.5 42.7 2.8 2.8 3.5 3.0 3.9 3.6 63.5 57.2 0.58 0.70 0.79
50 x 25 60.5 34.0 2.8 2.8 3.5 3.0 3.9 3.4 63.5 50.8 0.55 0.67 0.74
50 x 20 60.5 27.2 2.8 2.1 3.5 2.5 3.9 2.9 63.5 44.5 0.45 0.59 0.68
65 x 65 76.3 76.3 3.0 3.0 3.5 3.5 5.2 5.2 76.2 76.2 1.03 1.20 1.74
65 x 50 76.3 60.5 3.0 2.8 3.5 3.5 5.2 3.9 76.2 69.9 0.95 1.11 1.56
65 x 40 76.3 48.6 3.0 2.8 3.5 3.0 5.2 3.7 76.2 66.7 0.92 1.05 1.51
65 x 32 76.3 42.7 3.0 2.8 3.5 3.0 5.2 3.6 76.2 63.5 0.90 1.03 1.48
65 x 25 76.3 34.0 3.0 2.8 3.5 3.0 5.2 3.4 76.2 57.2 0.87 1.00 1.44
80 x 80 89.1 89.1 3.0 3.0 4.0 4.0 5.5 5.5 85.7 85.7 1.35 1.78 2.41
80 x 65 89.1 76.3 3.0 3.0 4.0 3.5 5.5 5.2 85.7 82.6 1.30 1.68 2.29
80 x 50 89.1 60.5 3.0 2.8 4.0 3.5 5.5 3.9 85.7 76.2 1.22 1.59 2.12
80 x 40 89.1 48.6 3.0 2.8 4.0 3.0 5.5 3.7 85.7 73.0 1.18 1.53 2.06
80 x 32 89.1 42.7 3.0 2.8 4.0 3.0 5.5 3.6 85.7 69.9 1.16 1.51 2.03
100 x 100 114.3 114.3 3.0 3.0 4.0 4.0 6.0 6.0 104.8 104.8 2.12 2.80 4.12
100 x 80 114.3 89.1 3.0 3.0 4.0 4.0 6.0 5.5 104.8 98.4 1.99 2.68 3.83
100 x 65 114.3 76.3 3.0 3.0 4.0 3.5 6.0 5.2 104.8 95.3 1.93 2.52 3.71
100 x 50 114.3 60.5 3.0 2.8 4.0 3.5 6.0 3.9 104.8 88.9 1.85 2.44 3.53
100 x 40 114.3 48.6 3.0 2.8 4.0 3.0 6.0 3.7 104.8 85.7 1.82 2.38 3.47
150 x 150 165.2 165.2 3.4 3.4 5.0 5.0 7.1 7.1 142.9 142.9 4.70 6.84 9.58
150 x 125 165.2 139.8 3.4 3.4 5.0 5.0 7.1 6.6 142.9 136.5 4.49 6.54 9.08
150 x 100 165.2 114.3 3.4 3.0 5.0 4.0 7.1 6.0 142.9 130.2 4.27 6.16 8.67
150 x 80 165.2 89.1 3.4 3.0 5.0 4.0 7.1 5.5 142.9 123.8 4.14 5.99 8.38
150 x 65 165.2 76.3 3.4 3.0 5.0 3.5 7.1 5.2 142.9 120.7 4.08 5.88 8.25
200 x 200 216.3 216.3 4.0 4.0 6.5 6.5 8.2 8.2 177.8 177.8 8.91 14.30 17.90
200 x 150 216.3 165.2 4.0 3.4 6.5 5.0 8.2 7.1 177.8 168.3 8.26 13.10 16.60
200 x 125 216.3 139.8 4.0 3.4 6.5 5.0 8.2 6.6 177.8 161.9 8.06 12.90 16.10
200 x 100 216.3 114.3 4.0 3.0 6.5 4.0 8.2 6.0 177.8 155.6 7.84 12.50 15.70
200 x 90 216.3 101.6 4.0 3.0 6.5 4.0 8.2 5.7 177.8 152.4 7.80 12.40 15.60
250 x 250 267.4 267.4 4.0 4.0 6.5 6.5 9.3 9.3 215.9 215.9 13.40 21.50 30.40
250 x 200 267.4 216.3 4.0 4.0 6.5 6.5 9.3 8.2 215.9 203.2 12.70 20.40 28.50
250 x 150 267.4 165.2 4.0 3.4 6.5 5.0 9.3 7.1 215.9 193.7 12.00 19.20 27.20
250 x 100 267.4 114.3 4.0 3.0 6.5 4.0 9.3 6.0 215.9 184.2 11.60 18.60 26.40
300 x 300 318.5 318.5 4.5 4.5 6.5 6.5 10.3 10.3 254.0 254.0 21.00 30.10 47.20
300 x 250 318.5 267.4 4.5 4.0 6.5 6.5 10.3 9.3 254.0 241.3 19.80 28.80 44.60
300 x 200 318.5 216.3 4.5 4.0 6.5 6.5 10.3 8.2 254.0 228.6 19.10 27.70 42.70
300 x 150 318.5 165.2 4.5 3.4 6.5 5.0 10.3 7.1 254.0 219.1 18.50 26.60 41.40
300 x 125 318.5 139.8 4.5 3.4 6.5 5.0 10.3 6.6 254.0 215.9 18.30 26.30 41.00
350 x 350 355.6 155.6 4.8 4.8 7.9 7.9 11.1 11.1 279.4 279.4 27.30 44.80 62.40
350 x 300 355.6 318.5 4.8 4.5 7.9 6.5 11.1 10.3 279.4 269.9 25.80 43.20 59.80
350 x 250 355.6 267.4 4.8 4.0 7.9 6.5 11.1 9.3 279.4 257.2 24.70 41.00 57.30
350 x 200 355.6 216.3 4.8 4.0 7.9 6.5 11.1 8.2 279.4 247.7 23.70 39.70 42.00
350 x 150 355.6 165.2 4.8 3.4 7.9 5.0 11.1 7.1 279.4 238.1 23.60 38.00 54.50
400 x 400 406.4 406.4 4.8 4.8 7.9 7.9 12.7 12.7 304.8 304.8 33.80 55.20 87.70
400 x 350 406.4 355.6 4.8 4.8 7.9 7.9 12.7 11.1 304.8 304.8 33.20 54.20 84.70
400 x 300 406.4 318.5 4.8 4.5 7.9 6.5 12.7 10.3 304.8 295.3 35.20 51.90 82.30
400 x 250 406.4 267.4 4.8 4.0 7.9 6.5 12.7 9.3 304.8 282.6 31.00 50.60 79.80
400 x 200 406.4 216.3 4.8 4.0 7.9 6.5 12.7 8.2 304.8 273.1 30.40 49.70 78.10
400 x 150 406.4 165.2 4.8 3.4 7.9 5.0 12.7 7.1 304.8 263.5 29.80 48.50 76.80
450 x 450 457.2 457.2 4.8 4.8 7.9 7.9 14.3 14.3 342.9 342.9 42.70 70.00 125.00
450 x 400 457.2 406.4 4.8 4.8 7.9 7.9 14.3 12.7 342.9 330.2 40.10 67.50 120.10
450 x 350 457.2 355.6 4.8 4.8 7.9 7.9 14.3 11.1 342.9 330.2 38.40 64.70 115.00
450 x 300 457.2 318.5 4.8 4.5 7.9 6.5 14.3 10.3 342.9 320.7 36.80 62.00 114.00
450 x 250 457.2 267.4 4.8 4.0 7.9 6.5 14.3 9.3 342.9 308.0 35.30 59.40 112.00
500 x 500 508.0 508.0 5.5 5.5 9.5 9.5 15.1 15.1 381.0 381.0 60.60 103.80 163.10
500 x 450 508.0 457.2 5.5 4.8 9.5 7.9 15.1 14.3 381.0 368.3 58.00 98.90 157.60
500 x 400 508.0 406.4 5.5 4.8 9.5 7.9 15.1 12.7 381.0 355.6 56.70 96.80 152.30
500 x 350 508.0 55.6 5.5 4.8 9.5 7.9 15.1 11.1 381.0 355.6 56.10 95.80 149.40
500 x 300 508.0 318.5 5.5 4.5 9.5 6.5 15.1 10.3 381.0 346.1 55.10 93.60 147.00
500 x 250 508.0 267.4 5.5 4.0 9.5 6.5 15.1 9.3 381.0 333.4 53.97 92.27 144.49
500 x 200 508.0 216.3 5.5 4.0 9.5 6.5 15.1 8.2 381.0 323.9 53.37 91.30 142.73
